PVC dispensing machine for making label

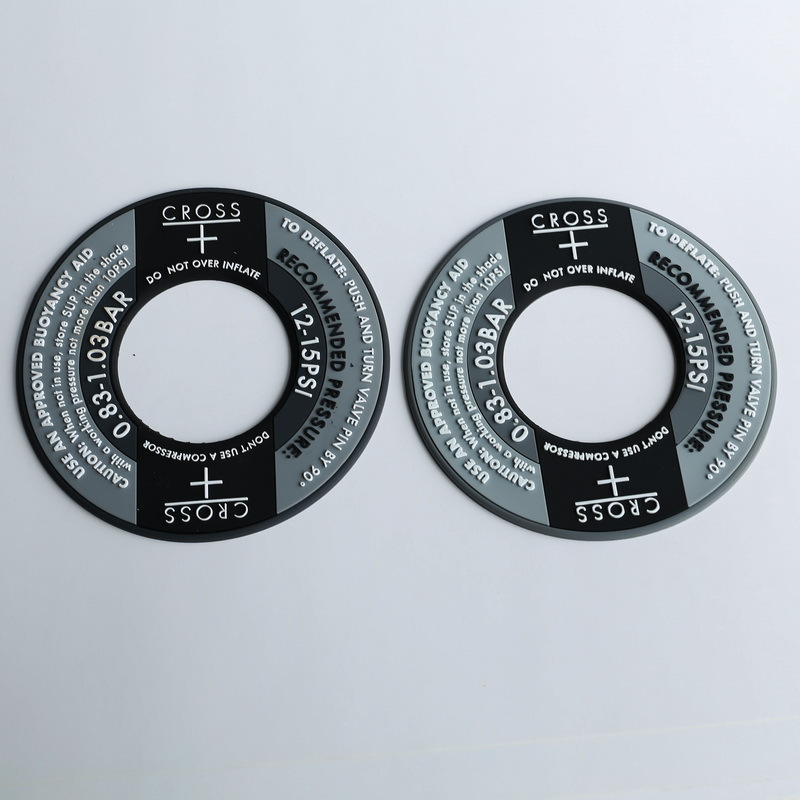

PVC dispensing machine also called pvc dripping machine, standard type is 12 colors and 18 colors, mainly used to make soft PVC rubber products, such as: Photo frame/ key chain /luggage tag /key covers / lighter covers/mouse mat/ hair clip/ brooch/refrigerator magnets/ coasters/ bar mat/ table mat/car mat/bottle opener/ anti slip mat/ USB flash disk cover/ card reader cover/ mobile phone straps / mobile phone holder/mobile cleaner/ mobile phone cover/ file clamp/lanyards/zipper puller,etc.

PVC dispensing machine also can be used in dispensing liquid silicone, ink, paint, etc liquid.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • DH-DM12

  • Do hearts

Product Description

12 dispensing head

12 dispensing head can work 12 cavities same time or 4 cavities with 3 different color

Teaching box

The teaching box is programmed, no computer can work

Independent cylinder control

12 pcs independent cylinder control.Each dispensing head can be controlled independently

Features

Features

Three axes (X、Y、Z), easy installation, and operation, customer even can install and run the machine with our manual and English instructions without our specialist guidance

Specification

ModelDH-DM12-1DH-DM12-2
Colors4 /6 /8 /10 /12 //18 /24 /364/6/8/10/12/18
Work Journey L*W*H635*385*55mm650*400*70
Working Table700*385mm900*600
Transmission MethodServo motorBelt or servo motor
Barrel specification1L/121L/12
VoltageAC/220VAC/220
Power1kw1
Dimension L*W*H1200*1100*1550mm1100*1050*1550
Weight300kg450kg


Application

FAQ

1.Q:Can we make samples?

A:We support free samples sevrice


2.Q:How many colors we can choose?

A:We supply 4/6/8/10/12/16/18/24/36 colors and accept customization


3.Q:What software does the machine use?

A:Logoshop etc.


4.How long is the warranty ?

A:1 year.


4.How is the after-sales service?

A:1. Video support

   2.Support free installation and training service

   3.Supply spare parts within the whole life of the machine
